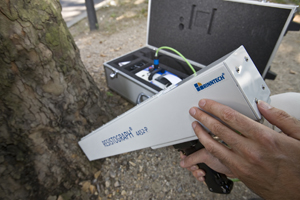

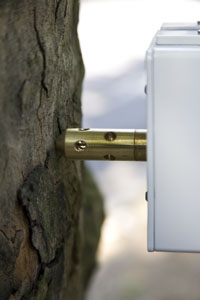

| RESISTOGRAPH® Trees and wooden constructions often do not show their internal state. The RESISTOGRAPH® series 4 reveals it by electronically controlled drill resistance measurements.
The RESISTOGRAPH® series 4 is an ideal inspection device for wood defects and wood structure: fast, precise and easy to use.
The new RESISTOGRAPH® series 4 has been completely re-designed, based on our practical experience from thousands of applications. Different versions are available for low/medium density wood and high density wood. It is now more powerful and its computer-controlled thrust adjustment lets the user conentrate on the object. Pre-selection of speed and thrust is no longer necessary! Results are printed in time and 1:1 on a built-in printer and are furthermore stored on the memory card (up to 500 profiles). The data can later be transferred to your PC and analysed with DECOM. Applications
Trees: - Road, park and forest treesHazard tree inspection
- Detection of decay, hollow spaces and cracks
- Wood quality evaluation
Timber: - Construction timber, poles and piles
- Quality evaluation of timber
- Inspection of timber
- Detection of decay and hollow spaces
|  |
Advantages - Lower weight (4.5kg)
- Fast (up to 30 cm/min)
- Computer controlled thrust adjustment
- Drilling depth: 44 cm (optional: 30-100 cm)
- Automatic needle rewind
- Long-life battery pack without memory effect.
- Built in printer for 1:1 output
- Data memory for up to 500 profiles.
- DECOM software for graphical presentation.
|
