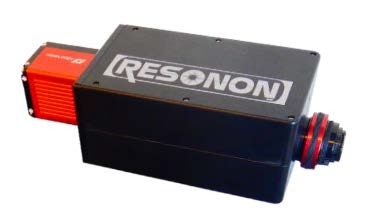

Pika NIR-320
Hyperspectral imaging camera covering the near infrared spectral range.
Spectral Range (nm):900 – 1700
Spectral Resolution (nm):4.9
Spectral Channels:164
Spatial Channels:320
Max Frame Rate (fps):520
Bit Depth:14
Weight (lb / kg):5.9 / 2.7
Dimensions (cm):11.0 x 29.6 x 8.9
Connection Type:GigE
Operating Temperature (°F / C):41-104, 5-40
f/#:1.8
Pixel size (μm):30
Avg. RMS Spot Radius (μm):10
Smile (peak-to-peak) (μm):10
Keystone (peak-to-peak) (μm):10
|
