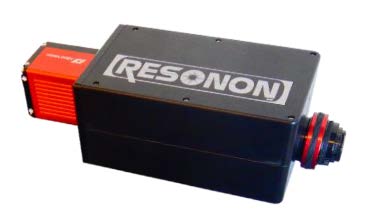

Pika NIR-640
High-precision infrared hyperspectral imaging camera. High spectral and spatial resolutions.
Spectral Range (nm):900 – 1700
Spectral Resolution (nm):2.5
Spectral Channels:328
Spatial Channels:640
Max Frame Rate (fps):249
Bit Depth:14
Weight (lb / kg):5.9 / 2.7
Dimensions (cm):11.0 x 29.6 x 8.9
Connection Type:GigE
Operating Temperature (°F / C):41-104, 5-40
f/#:1.8
Pixel size (μm):15
Avg. RMS Spot Radius (μm):10
Smile (peak-to-peak) (μm):10
Keystone (peak-to-peak) (μm):10
|
