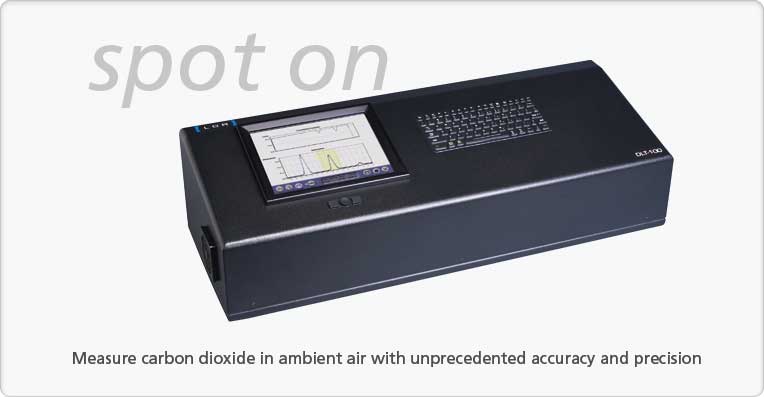

High-Accuracy CO₂ Analyzer

• Extremely Accurate

• Measures over a very wide range of concentrations

• Unsurpassed Performance

Insensitive to all other atmospheric gases, the High-Accuracy CO₂ Analyzer measures carbon dioxide in dry ambient air with unprecedented accuracy and precision (total measurement uncertainty of less than 1 part in 3000). The instrument can store data practically indefinitely on its internal hard disk drive and can send real-time data to a data logger through its analog, digital (RS232), and Ethernet outputs allowing unattended long-term standalone operation.

Based on high-resolution direct-absorption spectroscopy (see Theory of Operation), the instrument offers negligible zero and span drift and a significantly reduced need for regular calibration with expensive reference gases (compared with conventional instruments). The High-Accuracy CO₂ Analyzer is designed for applications that require the performance of a reference laboratory without the need for regular calibration with expensive gas standards.

Specifications

Performance

Accuracy

Concentration Range

Repeatability/Precision (1-sigma, typical ambient levels, 0.1 Hz)

Response Time (flow time through measurement cell)

25 seconds (internal pump)

Operating Requirements

Ambient Humidity

<98% RH Non-Condensing

Operating Temperature

15-35 °C

Power Requirements

115/230 VAC; 50/60 Hz; 80 W

Sample Temperature

10-40 °C

Size & Weight

Dimensions

10" H x 38" W x 14" D

Weight

<60 lbs (27 kg)

Configuration

Consumables

None

Data Storage

Internal Hard Drive

Display

12.1" Color TFT

Inlet/Outlet Fittings

1/4", 1/4" Swagelok^®

Outputs

Digital (RS232), Analog, Ethernet
