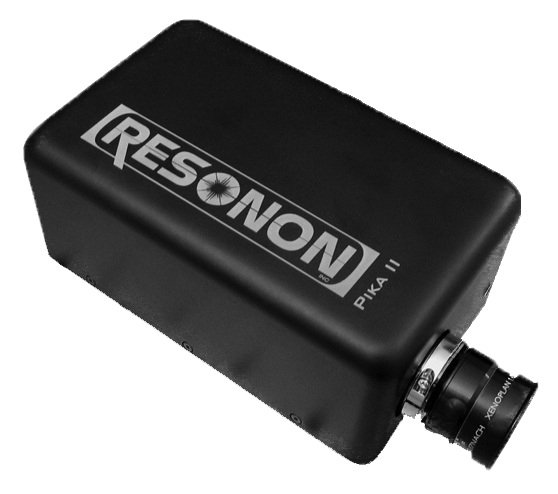

The Pika II is the most popular and most affordable hyperspectral imaging camera of Resonon.
Pika II Specifications
Spectral Range 400 –900 nm
Spectral Resolution 2.1 nm
Spectral Channels 240
Spatial Channels 640
Max Frame Rate 145 fps
Bit Depth 12
Weight 2.8 lbs,1.3 kg
Dimensions 9.7 x 16.8 x6.4cm
Connection Options GigE
Temperature Range 46-90 F, 8-32 C
f/# f /3.0
Avg.RMS SpotRadius 7 µm
Smile(peak-to-peak) 5 µm
Keystone(peak-to-peak) 7 µm
|
