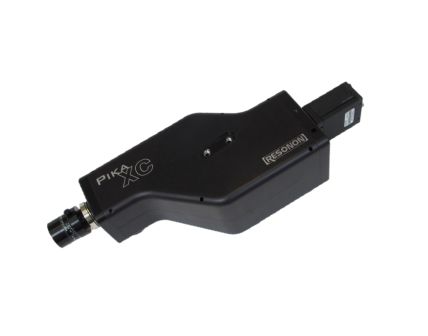

High-performance VNIR hyperspectral imager.
High spatial resolution, covers a larger spectral range than the Pika II, enhanced response at blue wavelengths, and excellent temperature stability. Compatible with any 2/3" C-mount camera.
Pika XC Specifications：
Spectral Range 400 –1000 nm
Spectral Resolution 2.4 nm
Spectral Channels 240
Spatial Channels 1600
Max FrameRate 242fps
Bit Depth 14
Weight 4.1 lbs,1.9kg
Dimensions 12.4 x 23.9 x 8.4cm
Connection Options GigE
Temperature Range 32-113 F, 0-45 C
f/# f / 2.4
Avg. RMS SpotRadius 6µm
Smile (peak-to-peak) 2µm
Keystone (peak-to-peak) 6µm
|
